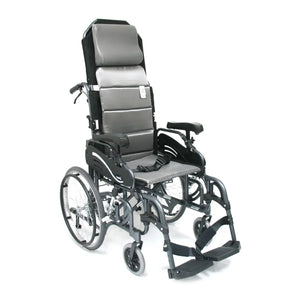

VIP515 Tilt-in-Space Lightweight Reclining Wheelchair — 16" Seat
Product Overview
The Karman VIP515 is a lightweight tilt-in-space manual wheelchair with 20-inch rear wheels for self-propulsion, offering a 0-to-35-degree center-of-gravity tilt range for pressure relief and weight redistribution. Engineered by Karman Healthcare with a T6 aircraft-grade aluminum frame and a globally patented folding design, it is one of the lightest folding tilt-in-space wheelchairs available. A practical long-term mobility solution for users who need regular repositioning without transitioning to a fully dependent transport model.
Key Features
Product Highlights

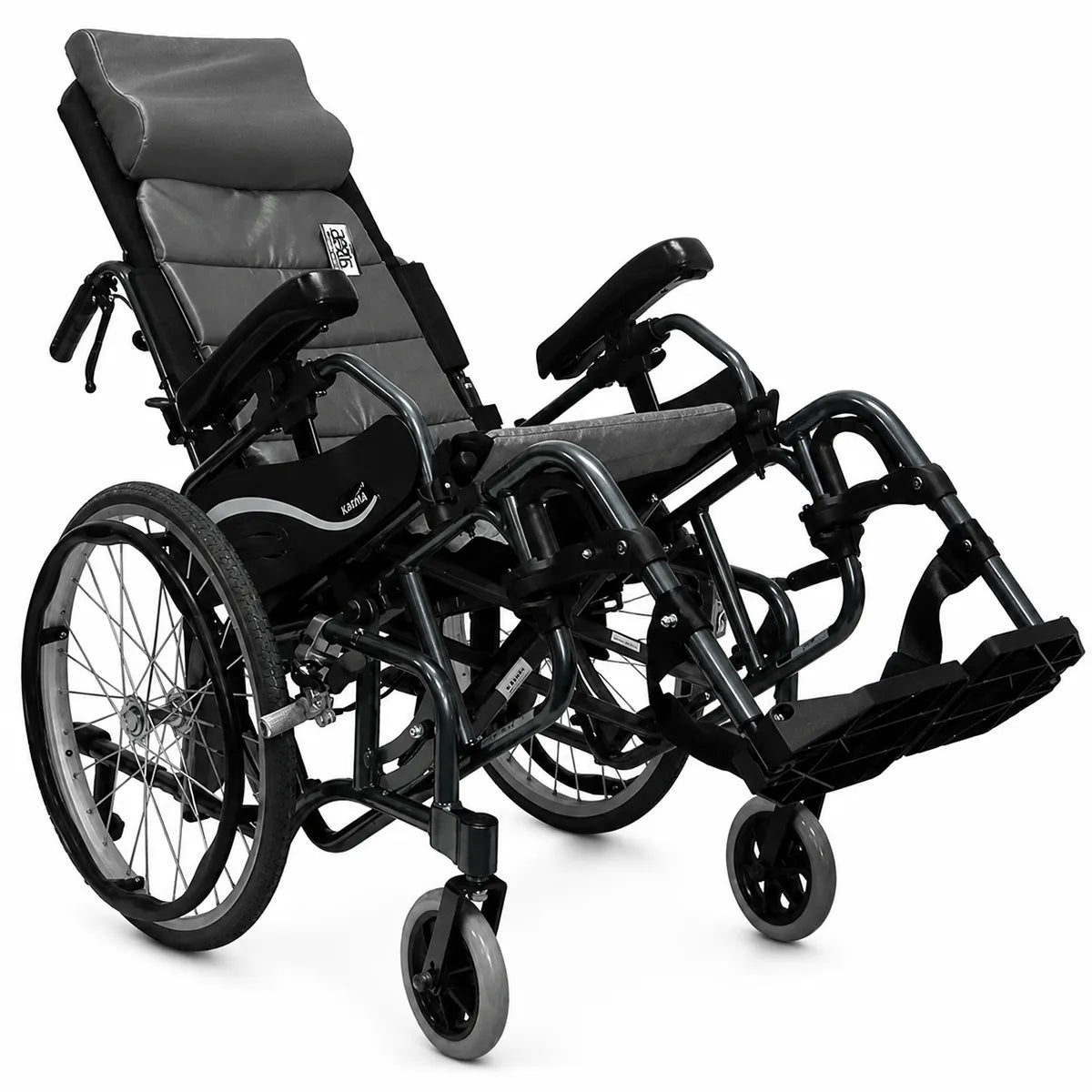

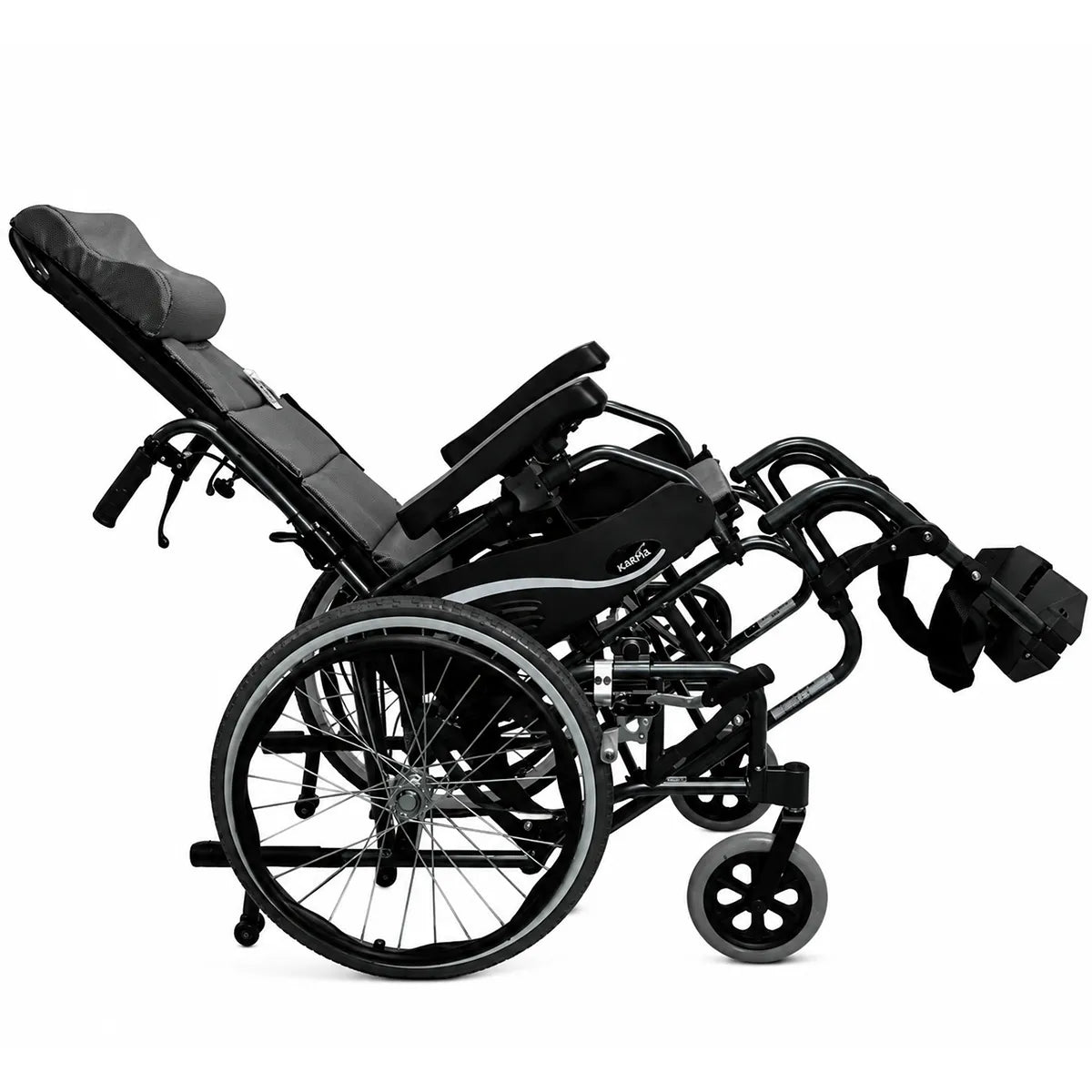

The VIP515's tilt mechanism shifts the user's entire center of gravity rather than just reclining the backrest, redistributing pressure from the seat area to the back and thighs — a clinically meaningful difference for users at risk of pressure sores during extended sitting. Gas cylinders power the tilt for smooth, controlled movement that one caregiver can manage without straining. With 20-inch rear wheels, users retain the ability to self-propel in lower tilt positions, giving them more independence than a purely transport-model tilt chair allows.
Dimensions
Frame & Build
General
| Model | VIP515 |
|---|---|
| Product Weight | 34.0 lb — Heavy — two-person lift recommended. |
| Assembly | Required — tools and instructions included. |
| Airline Approved | Yes — FAA Compliant |
| Certification | FDA 510(k) Registered CE Certified ISO 9001:2015 |
Shipping & Returns
| Shipping | Free — all 48 contiguous US states. No minimum. |
|---|---|
| Ships At | 53.0 lb |
| Returns | 30-day — new & unused in original packaging. Email support@ozzocare.com to start. |
| Spec Sheet | Open |
Warranty Coverage
| Wear Parts | 0 days |
|---|---|
| Battery | 0 months |
| Upholstery | 0 months |
| Electronics | 0 years |
| Parts | 1 years |
| Frame | 999 years |
| Frame Warranty | Limited Lifetime Warranty |
What's Inside the Box
16 items included
Assembly Required
Minimal assembly required — quick and tool-free setup
Primary Use Cases
5 real-world scenarios for this product
🏠 Home-Based Pressure Relief & Daily Seating
The VIP515's 0–35° tilt function shifts body weight through center-of-gravity movement rather than backrest recline — providing genuine pressure relief without disrupting the seated hip angle. For users spending extended hours at home in their wheelchair, this is the difference between managing pressure sores reactively and preventing them proactively.
🏥 Medical Recovery & Rehabilitation Seating
Widely prescribed in rehabilitation settings for patients with neurological conditions, spinal cord injuries, and complex postural needs. The tilt function supports safe positioning protocols, reduces spasticity triggers, and allows caregivers to unload pressure on schedule throughout the clinical day. Supports up to 300 lbs across 16", 18" seat widths.
🌳 Supervised Community & Outdoor Outings
At 36 lbs, this is the world's lightest folding tilt-in-space wheelchair — light enough for caregivers to lift and load into accessible vehicles for community outings. The 20" rear wheels roll on paved outdoor surfaces and gentle terrain. Flip-back armrests make access to the user easier during assisted outdoor positioning.
✈️ Assisted Living & Residential Care Facilities
Widely used by occupational therapists and care teams in long-term care settings. The folding frame allows storage between uses and transport between rooms or facilities. Caregiver-operated tilt requires no tools and can be adjusted throughout the day to manage pressure and fatigue for complex users.
⏳ Long-Term Postural Support & Skin Integrity
For users who cannot independently shift weight, scheduled tilt is a clinically established method for preventing pressure ulcer development. The VIP515's smooth 0–35° tilt range provides enough off-loading to meaningfully reduce peak interface pressure — without transferring the user or interrupting their daily routine. Maximum open width of 27" fits through any standard 32" doorframe.
Detailed Information
Users with neurological conditions (spinal cord injury, cerebral palsy, ALS, MS) who cannot independently shift weight and require scheduled pressure relief
Seniors with advanced mobility limitations and high pressure ulcer risk who spend most of the day seated
Post-stroke patients with trunk control deficits who need caregiver-managed postural support throughout the day
Medically complex long-term care residents whose positioning is managed by occupational therapists and care staff
Caregivers and therapy teams managing users whose pressure management, spasticity control, and positioning are daily clinical tasks
Best Suited EnvironmentsInpatient rehabilitation units where tilt-in-space positioning is part of a structured clinical protocol
Long-term care and nursing facilities where daily pressure management is a primary clinical responsibility
Home care environments where a dedicated caregiver manages a complex user's positioning throughout the day
Day program and adult day health centers where clinical positioning is maintained across full program days
Assisted living memory care and skilled nursing units where residents require consistent postural management
